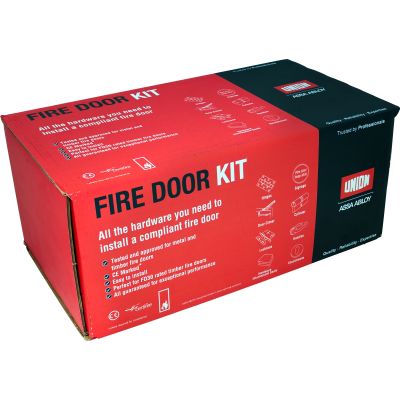

Union Fire Door Kit - Latch
SKU
UN J-FDK-LATCH
Sign in or request an account to see prices.
Designed for passage doors that are never locked, this kit contains an HD72 latch (no deadbolt) and associated hardware. Typical applications include corridor doors with air pressure concerns or some meeting rooms where normal opening/closing is by handle only. The Kit is ideal for use on timber fire doors, either FD30 or FD60.
- Kit can be installed on doors up to 950mm wide and 60kg in weight
- Grade 13 hinges are intended for use on doors up to 120kg
- CE3F Rack & Pinion closer is fully tested as an EN 3 closer in regular, transom and parallel arm installation
Designed for passage doors that are never locked, this kit contains an HD72 latch (no deadbolt) and associated hardware. Typical applications include corridor doors with air pressure concerns or some meeting rooms where normal opening/closing is by handle only. The Kit is ideal for use on timber fire doors, either FD30 or FD60.
- Kit can be installed on doors up to 950mm wide and 60kg in weight
- Grade 13 hinges are intended for use on doors up to 120kg
- CE3F Rack & Pinion closer is fully tested as an EN 3 closer in regular, transom and parallel arm installation
- HD72L is a DIN style sash lock with 60mm backset which assists in fulfilling requirements of BS 8300
- C433 hinges are CE Marked to EN 1935 and Certifire approved
- CE3F closer is CE Marked to EN 1154 and Certifire approved
- HD72SL latch is CE Marked to EN 12209 and Certifire approved
- 1000RRS01 lever handle has been tested to EN 1906
| Fitting Type | Screw On |
|---|---|
| Brandname | Union |
