Viro® V90 Elec. Lock - Horizontal
SKU
VR7928
Sign in or request an account to see prices.
Specially designed for installation on manual or automatic outside opening doors and drive through gates.
- For door/gate situated on a slope
- Rotating Deadbolt
- Key Override

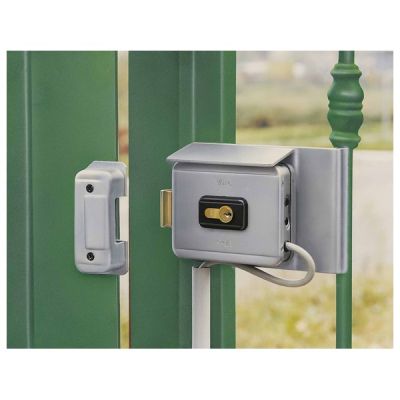

The V90 electric lock was specially designed for installation on manual or automatic outside opening doors and drive through gates. This type of opening is necessary when the door/gate is situated on a slope.It is supplied as standard with the ‘Service’ function: the lock opens with a single electric pulse and only resets once the door or gate has been opened and then closed.
- For Outward opening doors & gate s
- Galvanised Steel
- Replaceable Double Electric Coil
- Rotating Deadbolt
- Service & Security Function
- Standard 12V AC
- Key Override
- Euro Profile (Not Supplied)
| Voltage | 12V AC |
|---|---|
| Type | Gate, No Exit Button |
| Brandname | Viro |
| Colour | Galvanised |
| Cylinder Shape | Euro |
| Size - Width | 127mm |
| Handing | Outward Opening |
| Key Override | Yes |
| Size - High | 103mm |
| Size - Deep | 37mm |
| Size - Backset | 70mm |
| Packaging Type | Box |
| Operation | Fail Secure |
