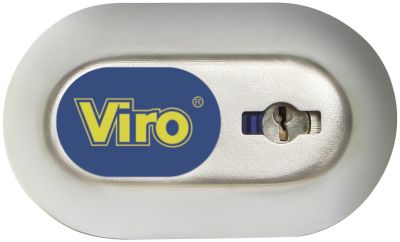

Viro® VR4212 'Van Lock Compact' Unit
Body:
zamak one-piece.
Anchor plate:
made of zamak alloy, it is fixed to the hinged door (rear doors) or to the side sliding door of the loading compartment with 2 inox stainless steel bolts and 2 rivets (supplied).
Outer cover:
made of electropolished inox stainless steel, without edges. It is fixed inside the loading compartment with 2 inox stainless steel screws (supplied).
Dead-bolt:
inox stainless steel.
Striker:
box shaped, 2.5 mm thick case-hardened, tempered and galvanised steel with a special anticorrosion treatment.
Cylinder:
5 pins brass cylinder, protected by a 1.5 mm thick tempered and satin-finish AISI 420B inox stainless steel rotating anti-drill and anti-burglary plate.
Keys:
supplied with 2 Viro Top Security profile nickel-plated brass keys, coated with non-slip nylon ergonomic grip.
Mechanism:
spring-loaded lock-bolt made of stainless steel, locks automatically (without using the key) by pushing the second closing door against the first, or closing the side sliding door.
Brass pins, inox stainless steel pin springs, inox stainless steel dead-bolt spring, lock protected by weather proof cap.
Device for emergency unlocking from the inside (practically impossible to grip from the outside with burglary tools) if the operator remains accidentally closed in the loading compartment.
Supplied with:
striker;inox stainless steel screws, bolts, washers and rivets;adhesive drilling template;inox stainless steel and nylon shims (which can also be ordered separately) to compensate any misalignment between the doors;scratch-proof rubber seal.
| Brandname | Viro |
|---|
